Nickel shims

Nickel shims are for replicating micro- and nanostructures.

Shims are used as stamps or molds with a very wide variety of micro- and nanostructures.

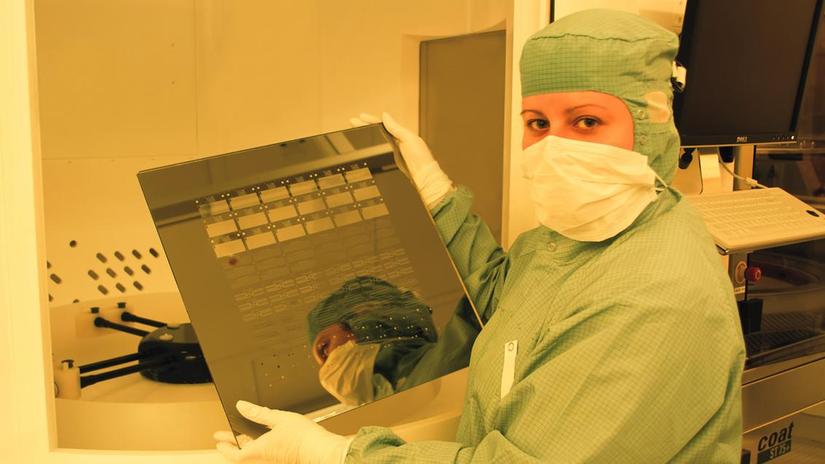

Replication of micro- and nanostructures | Shims

Nickel shims

As a series producer, temicon uses nickel shims to replicate micro- and nanostructures for the following technologies:

The shims are made in the lithography electroforming process chain. Depending on the structure type, structuring is done with the photo-lithographic process UV lithography, laser interference lithography or using alternative structuring processes.

The nickel-nickel family process

Generally, starting from a nickel form called the nickel father, further nickel copies are possible.

This is called the nickel-nickel family process. The first nickel copy is called the mother. It shows the inverse microstructure. The subsequent copy is called the son. This one has the same structural orientation as the original father.

waferformat up to

200mm

large format up to 500mm x 600mm
thickness from

0,02mm

up to 1mm
material

Nickel

coating on request

Functional surfaces by temicon
